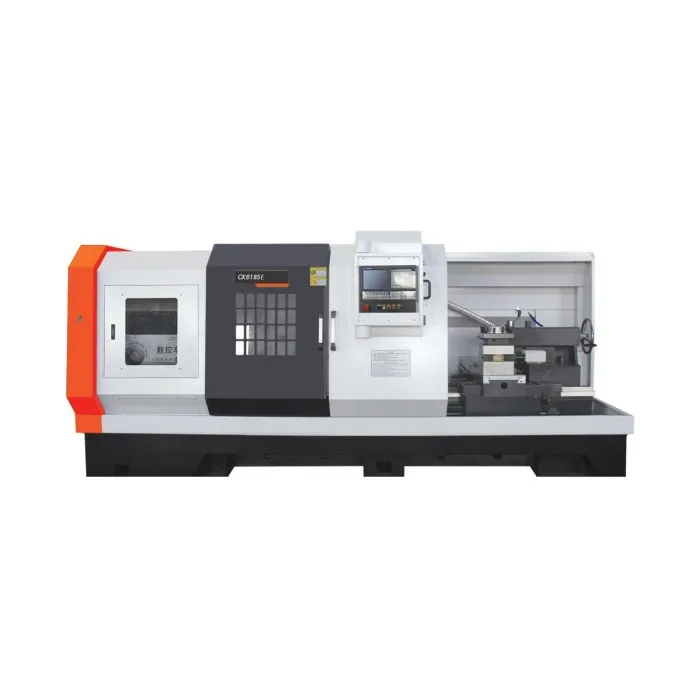

Qauv CK6140/ CK6150/ CK6160/ CK6163/ CK6180/ CK61100/ CK61125 ca txaj CNC tshuab dhos yog ua los ntawm high-strength cam khwb cia hlau, ntxiv nrog tshwj xeeb cov ntaub ntawv ntawm tooj liab thiab chromium, uas zoo txhim kho cov hnav tsis kam thiab stability ntawm lub tshuab cuab yeej.

Specification Parameter

Specification	Chav tsev	TIAB SA 6140	TIAB SA 6150	TIAB SA 6160
Hla lub txaj	mm	400	500	600
Swing hla hla swb	mm	220	250	395
Max. txoj kab uas hla	mm	400	500	600
Max. workpiece ntev	mm	550/750	1000/1500/2000	1000/1500/2000
Max. tig ntev	mm	420/620 (hli)	850/1350/1850	850/1350/1850
Spindle qhov ntswg		A2-6/A2-8	A2-8/A2-11	A2-8/A2-11
Spindle bore txoj kab uas hla	mm	48/82	82/130	82/130
Taper ntawm spindle qhov	mm	Collet / Metric 90	Metric 90 / Metric 140	Metric 90 / Metric 140
Spindle ceev ntau yam	r / min	150-2500/150-1800	150-1800/150-800	150-1800/150-800
Spindle hloov hom		Stepless	Stepless	Stepless
Spindle lub cev muaj zog	kws	5.5	7.5	7.5
Chuck hom		Collet / manual chuck	Phau ntawv chuck	Phau ntawv chuck
Chuck loj	Ntiv	8	10/15	10/15
X/Z ceev traverse	m/min	X:6 Z:8	X:6 Z:8	X:6 Z:8
X axis taug kev	mm	280	280	320
Z axis taug kev	mm	550/750	1000/1500/2000	1000/1500/2000
Txoj kev qhia hom		Hard rail	Hard rail	Hard rail
Muaj peev xwm ntawm turret		4	4	4
Tailstock tes tsho diam	mm	60	75	75
Quill traverse	mm	100	150	150
Quill taper		MT4	MT5	MT5
Tshuab dimension	mm	2000/220016001700	2650/3250/375017001820	2650/3250/375017001820
Net nyhav	kg	1900/2200	2700/3100/3300	2800/3200/3400

Yam khoom	Chav tsev	TIAB SA 6163	TIAB SA 6180	TIAB SA 61100	TIAB SA 61125
Max. viav vias saum txaj diam	mm	Φ630	Φ800	Φ1000	Φ1250
Max. viav vias hla swb txoj kab uas hla	mm	Φ350	Φ480	Φ620	Φ870
Max. workpiece ntev	mm	1000/1500/2000/3000	1500/2000/3000/5000
Max. tig ntev	mm	850/1350/1850/2850	1350/1850/2850/4850
Kev ncua deb ntawm spindle center los qhia	mm	315	400	500	625
Kev ncua deb ntawm spindle center rau hauv av	mm	1145	1130	1150	1275
Lub txaj qhia dav	mm	550	600	755	755
Spindle los ntawm lub qhov taub	mm	104	104	130	130
Spindle qhov ntswg		C11/A211	C11/A211	A2-15	A2-15
Spindle ceev ntau yam	r / min	30-90; 70-200; 130-380; 350-1000	30-90; 70-200; 130-380; 350-1000	10-32; 30-60; 50-120; 110-300	10-32; 30-60; 50-120; 110-300
Spindle ceev kauj ruam		4 zog, stepless
iav hloov		Phau ntawv / Auto	Phau ntawv / Auto	Phau ntawv	Phau ntawv
Main servo lub cev muaj zog	kws	11 kwv	11 kwv	22 kwv	22 kwv
X axis ceev ceev	m/min	4	4	4	4
Z axis ceev ceev	m/min	8	8	6	6
X axis pub min. chav ntsuas		0.001 hli	0.001 hli	0.001 hli	0.001 hli
Z axis pub min. chav ntsuas		0.001 hli	0.001 hli	0.001 hli	0.001 hli
Tailstock tes tsho diam	mm	φ100	φ100	φ160	φ160
Tailstock tes tsho mus ncig	mm	250	250	300	300
Tailstock tes tsho qhov taper		Morse 5	Morse 6	Morse 6	Morse 6
Hluav taws xob cov cuab yeej ncej	hom	Vertical plaub chaw nres tsheb	Vertical plaub chaw nres tsheb	Vertical plaub chaw nres tsheb	Vertical plaub chaw nres tsheb
	cov cuab yeej hloov lub sijhawm	3.6S	3.6S	3.6S	3.6S
	qhov loj	250*250	250*250	300*300	300*300

Khoom Feature

Lub tshuab tuaj yeem ua cov txheej txheem sib txawv hauv qhov sib txawv, lub voj voos conical nto thiab ntsia hlau xov los ntawm kev tswj cov lej, tshwj xeeb tshaj yog tsim rau cov me me thiab nruab nrab loj ncej thiab phaj workpiece los ntawm kev ntxhib los ua kom tiav hauv batch. Nws muaj qhov zoo xws li automation siab dua, yooj yim programming thiab raug siab dua.

Cov cuab yeej siv tshuab no yog cov khoom lag luam paub tab, nrog cov qauv compact, zoo nkauj tsos, loj spindle torque, siab rigidity, ruaj khov thiab txhim khu kev qha, thiab zoo heev precision tuav.

Txais yuav high-precision spindle bearing teeb thiab spindle nrog precision sib dhos thiab dynamic tshuav nyiaj li cas los xyuas kom meej spindle nrog high precision, tsis tshua muaj suab nrov thiab muaj zog rigidity.

Foundation

Kev ruaj khov ntawm lub hauv paus cuam tshuam ncaj qha qhov tseeb ntawm cov cuab yeej siv tshuab, yog li lub hauv paus yuav tsum ua raws li cov hauv qab no:

a) Txhawm rau tshem tawm kev co thaum lub sijhawm ua haujlwm, lub hauv paus yuav tsum yog cov av tawv tsis muaj kev tawg lossis tawg, thiab yuav tsum tiv thaiv kev nkag mus ntawm cov dej hauv av.

b) Lub hauv paus yuav tsum tsis muaj qhov tawg, thiab yuav tsum muaj kev ruaj khov txaus.

c) Lub hauv paus yuav tsum tau ua raws li lub hauv paus kos duab, qhov tob ntawm lub hauv paus yuav tsum tau txiav txim los ntawm cov av hauv cheeb tsam.
