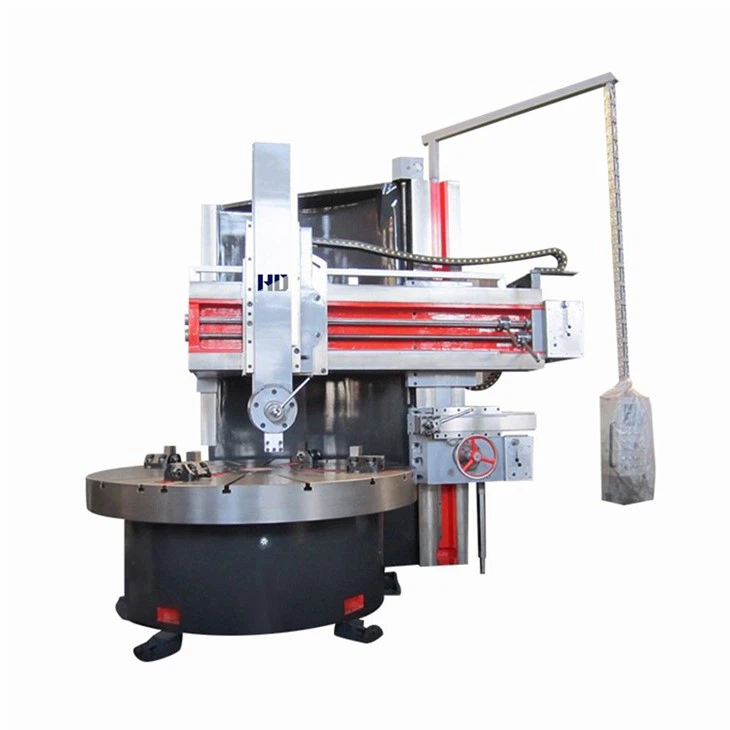

Tshuab dhos ntsug

Dalian Haidi Machinery Co., Ltd yog lub chaw tsim khoom lag luam uas tshwj xeeb hauv kev txhim kho, kev tshawb fawb thiab tsim cov tshuab dhos ib leeg ntsug, ob kab ntsug tshuab dhos, kab rov tav tshuab dhos, tho txawv-milling tshuab, machining chaw, iav hobbing tshuab. Cov khoom tshawb fawb los ntawm peb lub tuam txhab muaj cov txiaj ntsig zoo li ntau yam, ua tiav cov lus qhia, kev siv tshuab siab heev thiab zoo heev. Haidi Machinery npog thaj tsam ntawm 30, 000 square meters. Tam sim no peb muaj ntau tshaj 200 tus neeg ua haujlwm, suav nrog 11 tus kws tshaj lij engineers, 8 tus thawj coj loj, tshaj 160 tus neeg ua haujlwm. Peb lub Hoobkas muaj lub zog muaj zog thiab cov cuab yeej ua haujlwm zoo heev. Cov cuab yeej siv tshuab tsim los ntawm peb lub Hoobkas tau muag thoob plaws lub tebchaws thiab thoob ntiaj teb. Kev tsim kho siab heev, txhim khu kev ntseeg siab, kev ua haujlwm yooj yim, siv tau yooj yim, siab precision, kev ua haujlwm siab thiab kev pabcuam zoo tom qab muag tau yeej qhov kev qhuas ntawm cov neeg siv khoom. Peb lub tuam txhab yog lub tuam txhab loj tshaj plaws uas tshwj xeeb hauv kev tsim cov cuab yeej siv tshuab nyob rau sab qab teb Liaoning.In lub sijhawm no, nws tau muab kev txhawb nqa zoo los ua kom peb lub tuam txhab cov khoom tshawb fawb thiab kev tsim khoom thiab tau txais txiaj ntsig zoo los muab cov khoom lag luam rau cov neeg siv khoom hauv lub sijhawm luv.

Vertical lathes yog ib qho ntawm feem ntau hom tshuab hom. Nrog rau cov thev naus laus zis sib txawv, cov tshuab dhos ntsug kuj tau ua ntau dua thiab ntau dua. Vertical lathes yog cov tshuab uas taw qhia cov ntxaiv hauv lub dav hlau ntsug hauv qhov chaw ruaj khov. Lub workpiece ces tig, nce thiab nqis los muab tso rau hauv txoj kab nrog lub taub hau txiav. Cov tshuab no tsis tshua muaj kev nyuaj tshaj li kab rov tav lathes. Qhov kev xaiv machining no yog qhov zoo tshaj plaws rau cov khoom uas tsom mus rau shaping ib sab ntawm ib feem. Lawv ua tau zoo ntawm kev txiav hnyav ntawm qhov nruab nrab thiab loj.

Nce stability thiab rigidity
Lub tshuab dhos ntsug muab qhov tshwj xeeb stability thiab rigidity thaum lub sij hawm machining txheej txheem. Qhov kev tsim no txo ​​qis kev vibrations thiab tshem tawm qhov xav tau rau cov qauv kev txhawb nqa ntxiv, kom ntseeg tau tias qhov zoo ntawm qhov chaw tiav thiab kev ua siab ntev.


Versatility nyob rau hauv machining
Ib qho ntawm qhov zoo tshaj plaws ntawm cov tshuab dhos ntsug yog lawv cov versatility hauv machining ntau yam workpieces. Txawm hais tias koj tab tom ua haujlwm ntawm cylindrical Cheebtsam, disks, rings, lossis cov duab nyuaj, ntsug tig tshuab dhos tuaj yeem ua rau lawv txhua tus.


Enhanced productivity thiab efficiency
Vertical tshuab dhos yog tsim los optimize productivity thiab efficiency nyob rau hauv machining txheej txheem. Cov tshuab no txo ​​cov kev cuam tshuam ntawm phau ntawv, ua kom yooj yim ua haujlwm thiab txo lub sijhawm teeb tsa, thiab tau nruab nrog cov cuab yeej ua haujlwm siab tshaj plaws, xws li cov cuab yeej hloov pauv tsis siv neeg thiab kev tswj hwm programmable.




Vertical lathes tuaj yeem siv cov khoom hauv txoj kab uas hla ntawm 1 meter mus rau ntau tshaj 20 meters (39.37-787.40 nti). Ib qho gantry tsim nrog lub hauv paus ntawm kev tsim kho. Vertical lathes muab siab heev hlau txiav efficiency. Txawm li cas los xij, kev siv lub tshuab tuaj yeem yog qhov tsis zoo vim lub sijhawm hloov khoom siv thiab cov khoom siv thauj khoom, kho thiab tshem tawm.
Qhov xav tau rau cov tshuab loj rau cov tshuab concentric Cheebtsam tau rov ua dua nyob rau xyoo kaum xyoo dhau los nrog kev nce hauv kev xav tau ntawm lub zog thiab kev thauj mus los. Gas, chav thiab cua turbines nrog rau cov tshuab aero txhua yam xav tau cov khoom loj nrog kev ua haujlwm tig los ua. Kev tsim cov log tsheb ciav hlau kuj tau pom qhov nce ntau ntawm cov khoom thauj nrog rau cov tshiab sab hauv nroog thiab cov neeg caij tsheb ceev. Kev loj hlob ntawm cov tiam tshiab multifunctional tshuab yog tsav los ntawm ob peb technologies.
Kev ntsuas ua ntej sab nraum lub tshuab kom txo tau lub sijhawm teeb tsa, lub sijhawm hloov lub cuab yeej thiab ntsuas kev hloov ceev: Cov tshuab nruab nrog tig blocks tuaj yeem nruab nrog phau ntawv hloov ceev. Muab kev hloov cov cuab yeej tuav hauv tsawg tshaj li ib feeb nrog cov neeg siab thiab cov dej txias sab hauv qhia. Li no txo ​​cov cuab yeej teeb tsa thiab lub sijhawm ntsuas ua ntej piv rau cov cuab yeej shank. Los ntawm cov cuab yeej blocks nrog shank cuab yeej tuav mus rau hydro mechanical clamping units. Cov cuab yeej tau hloov pauv kom ntseeg tau tias qhov tsawg kawg nkaus downtime thiab tso cai rau kev tsim khoom tsis muaj neeg siv.To ua kom cov hlau txiav efficiency, ob txoj haujlwm tig tuaj yeem khiav ib txhij.
Nrog rau kev siv cov khoom sib txawv, tuav los ntawm plaub lub ces kaum clamping los yog curvic couplings, lub ntsiab spindle nyob rau hauv pem hauv ntej nruab nrab ntawm RAM yuav muab tsav mus rau 90 lub taub hau. Qhov no ua rau 4-axis machining centre, tiv thaiv kev txav ntawm cov khoom loj ntawm lub tshuab dhos mus rau lub chaw machining uas yog ob qho tib si sijhawm thiab kev siv zog ntau. Qhov kev xav tau ntawm qhov chaw rau ntau cov cuab yeej, vim muaj kev ua haujlwm ntau dua thiab ntau qhov chaw, yog muab los ntawm cov ntawv xov xwm saw hlau zoo ib yam li cov chaw machining loj lossis ntau lub tshuab ua haujlwm ntau dua li cov tsoos disc cia.

Muaj ntau ntau daim ntawv thov uas zoo li qub-fashioned technology yog qhov zoo tshaj plaws txhais tau tias ua qhov chaw. Cov txheej txheem tsim tshuab ntsug ntsug yog ib qho piv txwv ntawm chav kawm ntawm kev siv tshuab. Thaum nws daim ntawv yooj yim tau nyob ib puag ncig, lub tshuab dhos ntsug tseem tsis tau tso tseg. Cov qauv tshiab ntawm cov cuab yeej siv tshuab no suav nrog ntau qhov kev tsim kho thev naus laus zis uas pom nyob rau hauv cov chaw tig kab rov tav.
Foundries nrog machining peev xwm, los yog txawm cov uas outsource lawv machining, yuav tau txais txiaj ntsim los ntawm ntsug tig tshuab. Qhov tseem ceeb, qhov ntsug tig qhov chaw teeb tsa siv lub tshuab dhos tsoos thiab sawv nws kawg. Qhov kev tsim no muab ntau yam tseem ceeb ntawm kev tsim khoom thiab cov txiaj ntsig zoo, thiab tshwj xeeb tshaj yog zoo rau kev txiav ntau yam ntawm cov castings: nres discs, twj tso kua mis vaj tse, aircraft qhov chaw, hnyav-khoom qhov chaw, lub zog teb qhov chaw, thiab lwm yam.
Lub tshuab dhos ntsug yog lub tshuab dhos standalone uas muaj ob sab saum toj thiab hauv qab. Qhov txiaj ntsig tseem ceeb ntawm kev tsim qauv no yog lub peev xwm los siv rau sab saum toj rau kev ua kom ncaj los yog nkhaus nplej, thaum lub hauv qab tuaj yeem siv rau kev sib tsoo. Feem ntau muaj ob hom ntsug tshuab dhos ntsug, uas yog, ib sab thiab ob sab ntsug tshuab dhos. Cov qub yog tsim los ua cov nplej luv luv; whereas, lub tom kawg yog meant rau crosscutting lub hom phiaj. Vim tias sab saum toj ntawm Vertical tshuab dhos kuj tseem siv tau los ua cov cuab yeej tig, nws yog hu ua lub tshuab tig. Lub tshuab dhos ntsug muaj ob lub voj voog, uas txuas nrog los ntawm kev sib dhos spindle.

Vertical Lathe Thiab Kab rov tav Lathe Difference

Lub ntsiab sib txawv ntawm ntsug tshuab dhos thiab kab rov tav tshuab dhos yog nyob rau hauv lawv cov qauv tsim, machining ntau, thiab hom workpiece. Cov hauv qab no yog qhov sib txawv tseem ceeb ntawm lawv:
1.Spindle txoj hauj lwm: Lub spindle ntawm ntsug tshuab dhos yog ntsug, thaum lub spindle ntawm kab rov tav tshuab dhos yog tiaj.
2.Processing Scope: Vertical tshuab dhos yog tsim nyog rau kev ua haujlwm loj thiab hnyav nrog cov diameters loj thiab luv luv, tshwj xeeb tshaj yog cov uas tsis yooj yim rau clamp ntawm kab rov tav lathes. Nws muaj peev xwm loj load-bearing, zoo rigidity, thiab yog haum rau ua loj-loj, loj-inch, thiab ntev ntev workpieces, xws li discs, log hubs, iav blanks, thiab lwm yam. Kab rov tav tshuab dhos yog tsim nyog rau ua me me thiab nruab nrab lub log discs thiab ncej qhov chaw, ua kom yooj yim rau kev soj ntsuam thiab ua haujlwm.
3.Structural nta: Lub worktable ntawm ntsug tshuab dhos yog nyob rau hauv kab rov tav dav hlau, ua rau nws yooj yim rau nruab thiab kho workpieces, thaum lub kab rov tav tshuab dhos adopts ib tug tseem ceeb casting qauv, uas muaj siab rigidity thiab zoo seismic kuj.
Zuag qhia tag nrho, ntsug tshuab dhos thiab kab rov tav tshuab dhos txhua tus muaj lawv tus kheej kom zoo dua thiab siv tau, thiab kev xaiv ntawm lub tshuab dhos yog nyob ntawm cov kev ua haujlwm tshwj xeeb thiab hom haujlwm ua haujlwm.

Lub tshuab dhos ntsug pib nrawm

Vertical lathes ua rau kev ua haujlwm tau zoo dua thiab cov ntaub ntawv txiav yuav yooj yim dua. Lawv yog ua los ntawm cam khwb cia hlau los yog hlau thaiv. Vim tias tsis muaj qhov tuav thib ob, lub tshuab dhos ntsug yog qhov tshwj xeeb zoo thiab nqa cov txiaj ntsig ntawm kev thauj khoom ceev thiab tshem tawm. Cov tshuab no yog siv los ua cov khoom ua haujlwm siab. Lub tshuab dhos ntsug yuav ua kom tiav cov haujlwm uas koj xav tau, thiab tso cai rau koj yooj yim tsim cov khoom ua haujlwm raws li cov txheej txheem ntsug machining. Lub tshuab no siv nyob rau hauv ntau yam khoom yog hu ua ntsug tshuab dhos.
Vertical lathes yog siv rau machining cylindrical, conical, thiab contoured nto thiab luas lub ntsej muag kawg. Vertical lathes nrog turrets kuj tuaj yeem laum, counterboring, thiab reaming. Nruab nrog cov khoom siv tshwj xeeb, lub tshuab dhos tuaj yeem ua engraving, slotting, milling, thiab polishing. Ntau cov cuab yeej txiav tuaj yeem siv tib lub sijhawm ntawm lub tshuab dhos ntsug, txhua lub cuab yeej txiav yog tsau rau ntawm ib qho kev txhawb nqa, thiab qhov ua tau zoo tuaj yeem txhim kho tau zoo. Vertical lathes tuaj yeem ua cov khoom ua haujlwm nrog txoj kab uas hla ntawm 1 meter mus rau 20 meters (sib npaug rau 39.37 txog 787.40 nti). Vertical lathes muaj hlau txiav efficiency. Txawm li cas los xij, vim lub sijhawm hloov pauv ntawm cov cuab yeej thiab cov khoom thauj khoom, kho, thiab lub sijhawm tshem tawm, kev siv tus nqi ntawm cov tshuab dhos ntsug yuav tsis zoo.

Kev siv ntawm Vertical Lathes

Vertical tshuab dhos pom dav siv nyob rau hauv ntau yam lag luam uas precision thiab kev ntseeg tau yog qhov tseem ceeb. Cia peb tshawb txog qee qhov kev siv tseem ceeb uas lub tshuab dhos ntsug ua lub luag haujlwm tseem ceeb. Hauv kev lag luam aerospace thiab aviation, qhov kev nyab xeeb thiab qhov tseeb yog qhov tseem ceeb tshaj plaws, tshuab dhos ntsug yog qhov tseem ceeb. Cov tshuab no tsim cov khoom tseem ceeb xws li turbine disks, dav hlau cav shafts, tsaws iav Cheebtsam, thiab lwm yam.
Kev lag luam automotive xav tau cov khoom ntim ntau, nruj kam rau ua, thiab zoo ib yam. ntsug tshuab dhos yog feem ntau ua hauj lwm nyob rau hauv manufacturing cav Cheebtsam, xws li crankshafts, camshafts, thiab txuas rods. Hauv kev lag luam roj thiab roj, tshuab dhos ntsug yog qhov tseem ceeb hauv kev tsim cov khoom siv hauv cov khoom siv drilling thiab tshawb nrhiav. Cov tshuab no tsim cov valve loj, flanges, thiab cov yeeb nkab fittings. Embracing lub zog ntawm ntsug tshuab dhos opens lub ntiaj teb no ntawm possibilities nyob rau hauv machining. Lub stability, versatility, thiab efficiency muab los ntawm ntsug tshuab dhos ua rau lawv mus-rau xaiv rau ntau yam kev lag luam. Los ntawm aerospace thiab automotive manufacturing mus rau cov roj thiab roj sector, ntsug tshuab dhos ua tau zoo hauv kev tsim cov khoom zoo uas ua tau raws li cov kev cai nruj.

Raws li ib qho ntawm cov ua tshuab dhos ntsug manufacturers thiab lwm tus neeg nyob hauv Suav teb, peb sov siab txais tos koj mus yuav pheej yig ntsug tshuab dhos ua nyob rau hauv Suav teb nov los ntawm peb lub hoobkas. Tag nrho peb cov khoom yog nrog cov khoom zoo thiab tus nqi qis.
