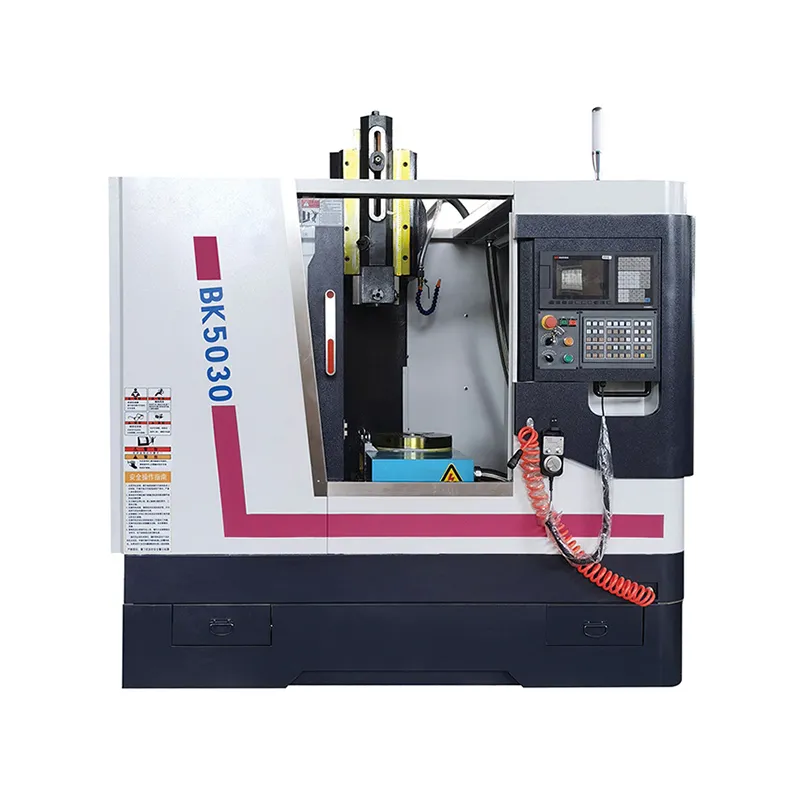

Qauv BK5018 / BK5030 CNC slotting tshuab muaj kev ua haujlwm ntawm lub dav hlau slotting, tsim nto thiab qhov tseem ceeb. Nws yog cov cuab yeej txiav tshuab uas paub txog qhov slotting.
Specification Parameter
|
Main technical parameters |
Chav tsev |
wb 5018 |
wb 5030 |
|
Max. slotting ntev ntawm ram |
mm |
180 |
300 |
|
Ram hloov mus ncig |
mm |
80 |
75 |
|
Ram lub sijhawm txav |
n / min |
30--120 |
30--180 |
|
Worktable loj |
mm |
600X320 |
550X405 |
|
Lub rooj ua haujlwm (X, Y) |
mm |
300X300 |
280X330 |
|
Kev ncua deb ntawm axis ntawm lub cuab yeej lub taub hau txhawb lub qhov thiab forearm ntawm kem |
mm |
400 |
505 |
|
Qhov deb nruab nrab ntawm lub ntsej muag kawg ntawm lub taub hau lub taub hau txhawb lub qhov thiab lub rooj ua haujlwm |
mm |
680 |
690 |
|
X axis lub cev muaj zog torque |
(N.M) |
6 |
6 |
|
Y axis lub cev muaj zog torque |
(N.M) |
6 |
6 |
|
Kev nrawm nrawm nrawm |
X (m / min) |
5 |
5 |
|
Y (m / min) |
5 |
5 |
|
|
Pob ntsia hlau (X) |
FFZD3205-3/P4 |
FFZD3205-3/P4 |
|
|
Pob ntsia hlau (Y) |
FFZD3205-3/P4 |
FFZD3205-3/P4 |
|
|
Main lub cev muaj zog (servo) |
KW |
3.7 |
3.7 |
Khoom Feature
Lub ntsiab tsav txais lub crank mechanism, uas yog pom tau los ntawm servo lub cev muaj zog los ntawm deceleration. X thiab Y kev coj noj coj ua paub txog cov kev tswj hwm kev ceev nrawm los ntawm servo tswj. X kev taw qhia pob ntsia hlau yog txuas ncaj qha nrog lub cev muaj zog, thiab Y kev taw qhia pob ntsia hlau thiab lub cev muaj zog raug xa mus los ntawm txoj siv sia synchronous. Raws li cov kev xav tau ntawm cov neeg siv tuaj yeem teeb tsa nrog NC faib lub taub hau lossis NC turntable, lub tshuab cuab yeej ua haujlwm muaj zog tshwj xeeb, tuaj yeem ua cov txheej txheem sib txawv ntawm qhov tseem ceeb.
Ntim
Cov khoom siv ntau lawm
Cov neeg siv khoom
FAQ
1. Koj qhov kev txiav txim yam tsawg kawg nkaus yog dab tsi?
Yam tsawg kawg nkaus kom muaj nuj nqis yog 1set.
2. Lub sijhawm them nyiaj ntawm koj lub tuam txhab yog li cas?
Lub sijhawm them nyiaj yog T / T lossis L / C.
3. Koj puas tuaj yeem qhia kuv txog qhov lav?
Warranty yog 1 xyoo.
4. Koj puas muaj CE lossis lwm daim ntawv pov thawj?
CE thiab ISO9001: 2008, SGS, TUV daim ntawv pov thawj, thiab lwm yam.
5. Dab tsi CNC system koj siv?
Siemens, Fanuc, GSK thiab lwm yam.
6. Thaum twg yog lub sijhawm khoom xa tuaj?
Peb yuav xa nws hauv 90 hnub tom qab tau txais koj cov nyiaj them poob haujlwm.
